Wireless Setup on a University Owned Macintosh running 10.6

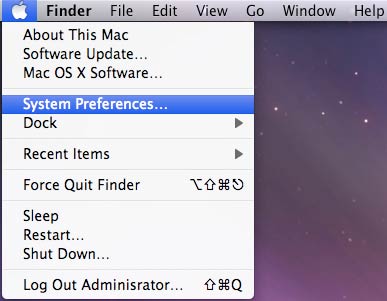

  1. Open System Preferences located by clicking the Apple on the top left hand side of the screen, as shown in Figure 1.
    Figure 1: Selecting System Preferences
    Figure 1: Selecting System Preferences

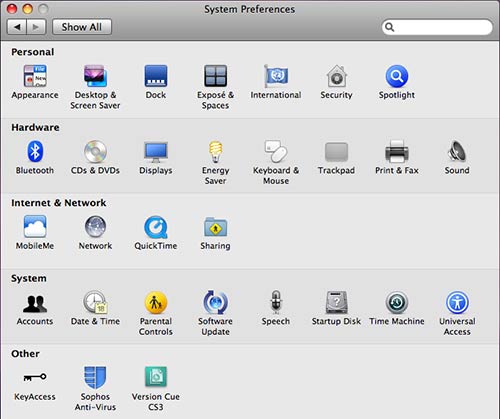

  2. You will then be prompted with the System Preferences screen. Click on “Network”
    Figure 2: System Preferences
    Figure 2: System Preferences

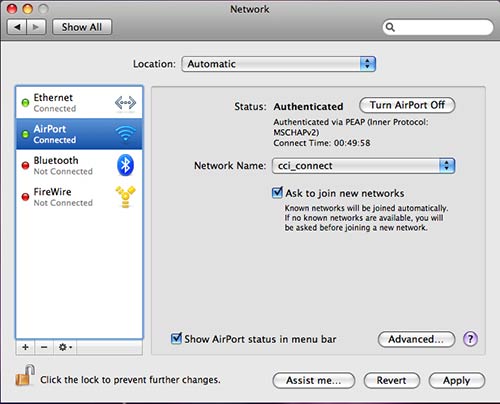

  3. Select Airport from the Network Pane. Select “Advanced” located on the lower right hand side of the Network window above “Revert” and “Apply”
    Figure 3: Airport Advances Settings
    Figure 3: Airport Advanced Settings

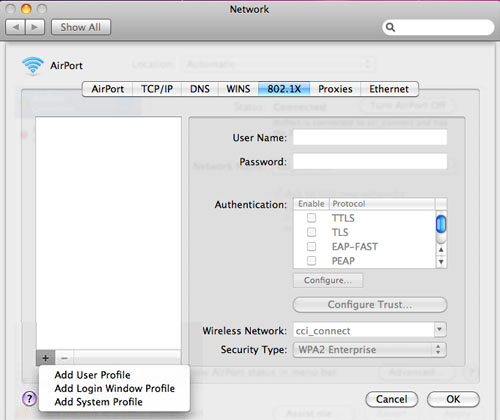

  4. Select “802.1x” as shown below in Figure 4. Select the Plus Icon located on the lower left hand side of the “Network” pane.
    Figure 4: 802.1x Airport Advances Settings
    Figure 4: 802.1x Airport Advanced Settings

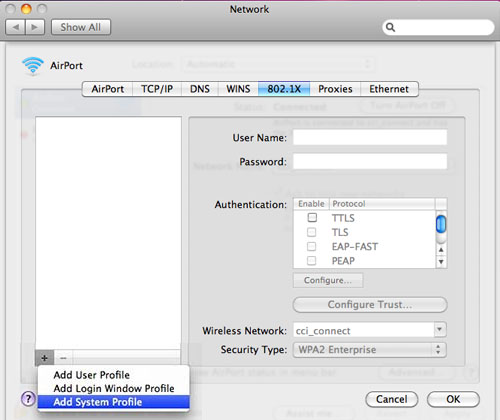

  5. Select “Add system Profile”
    Figure 5: 802.1x Add System Profile
    Figure 5: 802.1x Add System Profile

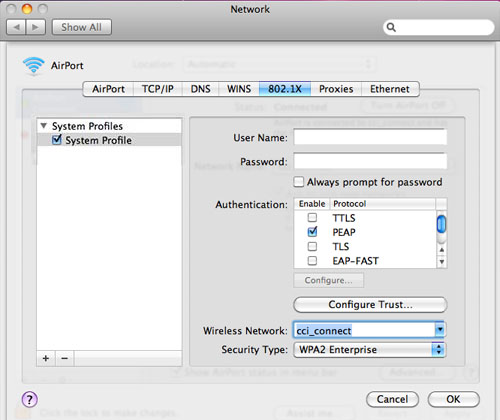

  6. Select Wireless Network: “cci_connect” and select PEAP
    Figure 6: 802.1x PEAP selection
    Figure 6: 802.1x PEAP selection
  7. Select “OK”
  8. Select “Apply” and close your “System Preferences”
